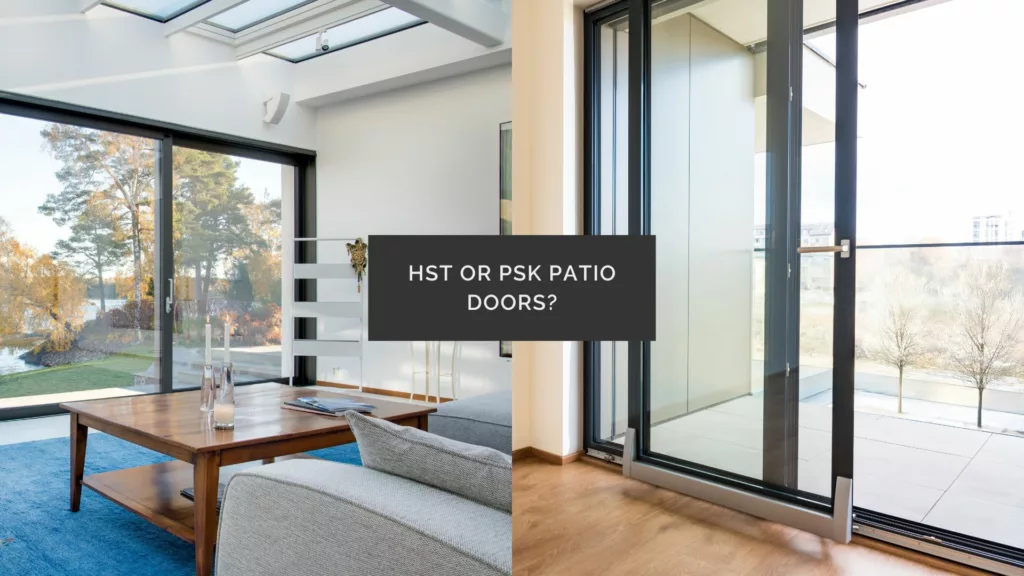

HST vs PSK Sliding Doors: Fundamental Construction Differences
How Sliding Systems for Patio Doors Differ
The fundamental difference between HST and PSK systems lies in the opening mechanism and the overall system construction. The lift-and-slide HST system is a premium solution designed for maximum operating comfort and the ability to create large-format glazing. The parallel sliding and tilting PSK system is based on proven technology utilizing standard window profiles, which translates into a different construction philosophy and range of applications.
The choice between these systems should not be based solely on budget. Each has its optimal application resulting from construction differences, technical capabilities, and installation specifics. Understanding these differences will enable an informed decision tailored to the investment’s character.
How the Lift-and-Slide HST System Works
The HST door mechanism, also called the lift-and-slide system, is based on a simple yet highly effective physical principle. In the closed position, the heavy patio sash rests with its entire weight on the seals, ensuring excellent sealing. Turning the special handle activates an advanced fitting system that lifts the entire sash vertically by 5-8 mm.
This seemingly small lift is crucial for operating comfort. The sash becomes completely relieved from the seals and begins resting on precise running carriages mounted in the fittings. This makes sliding even very heavy constructions surprisingly easy. In our production practice, we use fittings from the German manufacturer Hautau, from the ATRIUM HS series, which are designed to work with loads reaching standardly 330 kg, and in special versions up to 440 kg.
Why Even a Child Can Open HST Doors
Using fittings with such high load capacity means that a standard patio sash weighing 200-250 kg is a light load for this mechanism. The system operates at only half its capacity, guaranteeing smooth operation for decades. After lifting, the sash doesn’t rub against the seals but merely rolls on bearings with minimal resistance. In practice, this means even a small child can effortlessly slide a construction weighing over 200 kg.
This exceptional operating ease is no accident. It’s the result of thoughtful engineering that utilizes the lever principle and enormous strength reserves of components. For the most demanding installations or glazing with maximum dimensions, there’s the option to equip the system with electric drives that fully automate the opening and closing process.
Zero Threshold in HST Doors: Complete Barrier Elimination
One of the key construction advantages of the HST system is the ability to use a very low threshold or create a completely barrier-free passage. The standard threshold height in the HST system ranges from 20 to 48 mm, but there’s a technical possibility to completely level the construction with the floor surface.
A zero threshold is much more than an architectural detail. It’s a real quality-of-life improvement for many user groups. Seniors can safely move between the living room and terrace without tripping risk. Parents of small children don’t need to worry about falls during play. People using wheelchairs gain complete freedom of movement. This is universal design in its purest form.
PSK Door Mechanism: Proven Tilt-and-Slide Technology
How the Parallel Sliding and Tilting PSK System Works
The PSK system, whose name comes from the German Parallel-Schiebe-Kipp-Tür, uses a more complex sequence of movements to open. The mechanism is based on proven solutions used in window constructions, which translates into its characteristic usage features.
The PSK door opening process begins by turning the handle to the tilt position, exactly like a standard window. Further turning of the handle causes the upper part of the sash to push out from the frame. Then the user must pull the entire sash towards themselves, into the room’s interior, overcoming the seal resistance. Only after completing this sequence is it possible to slide the sash along the frame on the mounted rail.
This operating characteristic means that adequate free space must be provided in the room in front of PSK doors. The sash moves into the interior when opening, which may limit design possibilities of the space adjacent to the patio doors.
Unique Tilt Function as PSK’s Advantage
The main and practically only unique functional advantage of the PSK system is the full tilt function unavailable in HST constructions. The ability to tilt the sash allows safe and regular room ventilation without fully opening the door. This functionality is particularly valued in apartments where the balcony exit often serves primarily ventilation purposes, as well as in bedrooms with terrace access.
The tilt function means the possibility of micro-ventilation around the clock, even during residents’ absence. This solution is especially appreciated by people who value constant air exchange without the risk associated with leaving doors completely open.
High Threshold in PSK Doors: Real Architectural Barrier
The PSK system construction is based on a standard window frame, which directly affects threshold height. The lower part of the construction is a window frame with a height of 70-82 mm. This is a significant architectural barrier that can affect operating comfort.
A threshold of such height represents a real impediment in daily functioning. For elderly people, it can be a serious challenge requiring concentration with each passage. Small children learning to walk often trip over such thresholds. For wheelchair users, the PSK threshold often becomes insurmountable without additional solutions in the form of ramps.
Technical Parameters of HST and PSK Patio Doors in PVC
Heat Transfer Coefficient Uw for Sliding Systems
Thermal insulation is one of the key parameters determining thermal comfort and house operating costs. The heat transfer coefficient designated by the symbol Uw specifies how much thermal energy escapes through the door construction. The lower this coefficient’s value, the better the insulation and lower the heating costs.
The HST system, thanks to its massive, multi-chamber frame and advanced pressure seal system, was designed for energy-efficient and passive house construction. In our production offer, HST doors based on GEALAN S9000 profiles with a construction depth of 82.5 mm are mounted in a special, multi-track frame with a total construction depth reaching 190 mm. This construction allows the use of very warm triple-glazing packages with a thickness up to 52 mm.
The result of this advanced construction is a heat transfer coefficient for the entire door construction at a level of 0.71 to 0.77 W/(m²K). These are values characteristic of passive house construction, significantly exceeding European energy standard requirements.
Thermal Insulation of PSK Doors in GEALAN S8000 and S9000 Profiles
We manufacture PSK tilt-and-slide doors based on GEALAN S8000 and S9000 profiles. Both systems provide high thermal insulation, although due to their window profile-based design, they achieve slightly different parameters than the HST system.
GEALAN S8000 profiles with a construction depth of 74 mm, combined with appropriate glazing packages, allow achieving a Uw coefficient reaching up to 0.77 W/(m²K). The GEALAN S9000 system with a construction depth of 82.5 mm provides even better parameters, achieving similar values with greater construction mass.
It’s worth emphasizing that all these values clearly meet European standards requiring a Uw coefficient not exceeding 0.9 W/(m²K) for new buildings. The difference between HST and PSK systems in terms of thermal insulation is therefore smaller than it might seem, making both solutions suitable for energy-efficient construction.
Maximum Dimensions and Load Capacity of Sliding Constructions
The construction capabilities of both systems differ significantly, which has a direct impact on their application in various architectural projects. The PSK system, due to fitting load capacity and construction based on window profiles, has specific size limits.
The maximum width of the entire PSK construction is approximately 3300 mm, with a single movable sash having a maximum width of 1600 mm. Construction height is limited to approximately 2100 mm, and maximum sash weight is 200 kg. These limitations result from the parallel sliding and tilting mechanism’s capabilities.
The HST system offers completely different possibilities. Maximum construction width can reach 6500 mm, and a single sash can be as wide as 3235 mm. Height can reach 2700 mm, and Hautau ATRIUM HS fittings handle sashes weighing up to 440 kg.
Why Fitting Load Capacity Determines System Durability
The fitting load capacity issue has fundamental significance for long-term system reliability. Modern triple-glazing packages are characterized by considerable mass. A patio door sash with an area of several square meters with triple glazing can weigh 200-250 kg.
In the PSK system, this means the mechanism operates at or very close to its strength limit. A mechanism operating at the limit of its capabilities wears out much faster, is more susceptible to misalignment, and requires more frequent maintenance.
The HST system with fittings of 440 kg load capacity means that even a very large sash operates at only half the mechanism’s capacity. This enormous safety margin translates into smooth, trouble-free operation throughout decades of use.
Sealing and Security of Patio Doors
Sealing Classes According to European Standards
Both systems achieve high sealing parameters in accordance with European standards for building elements. Air permeability in class 4 means sealing at a pressure of 600 Pa, which corresponds to wind at a speed of approximately 112 km/h. Water tightness in class 9A is also tested at a pressure of 600 Pa.
The HST system, thanks to its massive construction, multi-point locking, and descending sash pressure, ensures even higher sealing in practical use. The pressure generated by the sash weight after its lowering is significantly stronger and more uniform than in the PSK mechanism.
Burglary Resistance and Usage Safety
The GEALAN S9000 system, in both HST and PSK versions, can be equipped with anti-burglary fittings in RC2 resistance class. This is the standard required by insurers in premium construction. RC2 class means resistance to burglary attempts lasting up to 3 minutes using simple tools.
From the perspective of daily usage safety, the HST system has additional advantages. The low or zero threshold eliminates tripping risk, which is one of the most common causes of household accidents. Smooth sash movement without jamming also increases safety, especially for children.
Total Cost of Ownership of Patio Doors
Why Purchase Price Is Only Part of the Investment
When choosing a patio door system, it’s natural to focus on the purchase price. However, it must be remembered that this is an investment for 25-30 years. The conscious investor analyzes the total cost of ownership in a long-term perspective.
The HST system represents a higher investment category. The price difference between HST and PSK typically ranges from 100 to 150%. This means HST doors cost 2-2.5 times more than comparable PSK doors. This significant price difference results from advanced multi-track construction, expensive fittings with high load capacity, and greater amount of materials used in production.
Operating and Maintenance Costs in Decades
Total cost of ownership encompasses much more than purchase price. Installation costs must be considered, where the HST system requires specialized floor preparation and professional equipment use. Operating costs related to heating will be similar in both systems due to comparable heat transfer coefficients, though HST can provide marginally better parameters with very large glazing.
Service and maintenance costs differ significantly. HST fittings, thanks to enormous strength reserve and simpler mechanics, require only basic lubrication once a year. The PSK system with more complex parallel sliding and tilting mechanism requires more frequent inspections and adjustments, especially in larger constructions operating at load capacity limits.
The lifespan of both systems also differs. From our experience, properly installed HST doors serve trouble-free for 25-30 years. The PSK system has a typical lifespan of 20-25 years, with the parallel sliding and tilting mechanism potentially requiring earlier replacement or thorough repair.
Patio Door Installation: Where the Secret to Success Lies
Warm Installation Technology for Energy-Efficient Systems
Even the best sliding doors with a Uw coefficient of 0.71 W/(m²K) become worthless with improper installation. Achieving declared insulation parameters is impossible without applying professional layered installation technology, colloquially called warm installation.
Warm installation is a comprehensive sealing system for the joint between the door frame and reveal. From the room interior side, vapor-tight tapes are used, which prevent water vapor condensation in the insulation layer. The space between the frame and wall is filled with polyurethane foam with high insulation properties. From the outside, vapor-permeable tapes or EPDM foils are applied, which protect against precipitation but allow any moisture to escape outward.
Without applying this 3-layer technology, thermal bridges form around the frame, through which valuable heat escapes. The effect is that despite investing in energy-efficient profiles with low Uw coefficient, the actual thermal parameters of the entire node are significantly worse.
Floor Preparation for HST Doors with Zero Threshold
Installing HST doors with a threshold completely leveled with the floor surface requires special attention already at the building’s shell construction stage. This is a critical difference compared to PSK door installation, which the investor must know before starting finishing works.
PSK doors are installed on the finished, completed floor surface. The window frame serving as a threshold is placed on the floor, which doesn’t require special preparations. The HST system with zero threshold requires a completely different approach. The lower frame must be integrated with floor layers even before executing finishing screeds and floor insulation.
This means the necessity of precise zero-level planning already at the building design stage and close cooperation between the joinery manufacturer and the construction team implementing the floors. An error at this stage can result in the impossibility of proper zero threshold installation or the necessity of costly floor rework.
When to Choose the HST System for Patio Doors
Single-Family Housing and Energy-Efficient Homes
The lift-and-slide HST system is a natural solution for new single-family homes, especially those designed according to energy-efficient or passive house requirements. The ability to prepare suitable substrate for the zero threshold already during construction allows full utilization of this system’s potential.
Homes designed with minimal energy consumption in mind require building elements with a Uw coefficient not exceeding 0.9 W/(m²K). The HST system in GEALAN S9000 profiles with appropriate glazing packages easily meets these requirements, achieving values from 0.71 to 0.77 W/(m²K).
Large-Format Glazing Over 3 Meters
If the architectural design assumes wide terrace glazing exceeding 3 meters in width, the PSK system ceases to be an option due to construction limitations. The HST system allows realization of constructions up to 6.5 meters wide, opening completely new design possibilities for architects and investors.
Wide glazing is not only a matter of aesthetics. It’s a fundamental change in experiencing living space, where boundaries between interior and garden blur. Natural light penetrates deep inside, which has documented positive effects on residents’ well-being and health.
Accessibility and Safety for All Generations
The HST system with zero threshold is the only reasonable solution for homes where elderly people, small children, or persons with limited mobility live or will visit. The PSK threshold with a height of 70-82 mm represents a real barrier for 90% of wheelchairs according to accessibility standards.
Investment in a zero threshold is also an investment in the future. A home designed with universal accessibility in mind maintains its functionality and value regardless of changing resident needs. This consideration is particularly important for people building a home for many years, who want to age safely in it.
When the PSK System Is the Right Choice
Multi-Family Housing and Balcony Exits
The parallel sliding and tilting PSK system finds its natural application in multi-family housing, where relatively small balcony exits are standard. Dimensions up to 3 meters of construction width ideally correspond to typical balcony openings in apartments.
In this type of application, the unique tilt function becomes a key advantage. Residents of apartment buildings appreciate the ability to ventilate the apartment through tilted balcony doors without fully opening them. This is particularly important in urban locations where full door opening may be problematic for security or comfort reasons.
Modernization of Existing Buildings Without Floor Intervention
When replacing joinery in existing buildings, the PSK system has a significant logistical advantage. Installation takes place on the finished, completed floor surface without the need to interfere with floor layers. This means simpler work organization, shorter completion time, and no need to dismantle and re-lay floors.
Modernization using the HST system with zero threshold would require demolition of the existing floor surface in the door zone, generating additional costs, time, and inconvenience. In many cases, such a solution is simply impractical or economically unjustified.
Priority of Tilt Function and Limited Budget
For some investors, the full tilt function is a priority excluding other solutions. People who value the possibility of long-term micro-ventilation, especially in bedrooms or studies with terrace access, will find the optimal functional solution in the PSK system.
The PSK system is also the choice for conscious investors with limited budget who understand the compromises resulting from this decision. With standard dimensions and acceptance of a higher threshold and greater operating effort, PSK doors in GEALAN S8000 or S9000 profiles provide excellent energy-efficient parameters in a more affordable price category.
Summary: Informed Decision Based on Facts
The choice between the HST lift-and-slide system and the PSK tilt-and-slide system is a strategic decision that will affect your comfort for the next 25 years or more. There is no single universal solution that is suitable for all applications. Each system has its optimal place in different investment scenarios.
The HST system is a premium solution for projects where the priority is maximum operating comfort, ability to realize large-format glazing, complete accessibility, and elimination of architectural barriers. The higher initial investment finds justification in trouble-free operation, durability, and lower service costs throughout decades of use.
The PSK system remains a reasonable choice for standard residential applications, especially in multi-family housing, where the tilt function is a priority and opening dimensions fall within the system’s construction limits. With proper selection of GEALAN S8000 or S9000 profiles, PSK doors achieve excellent energy-efficient parameters comparable to the HST system.
The key is not choosing the cheapest solution, but choosing the system best suited to the investment’s character, users’ lifestyle, and long-term property value perspective. Technical parameters, usage method, and installation possibilities should be equally important as the budget question.
